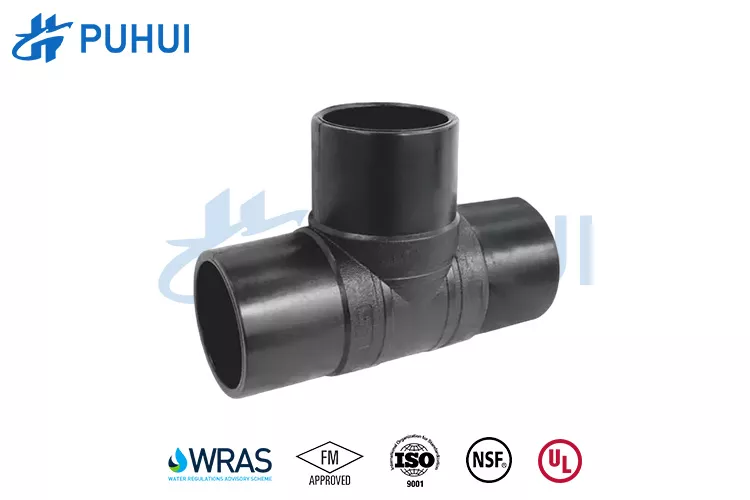

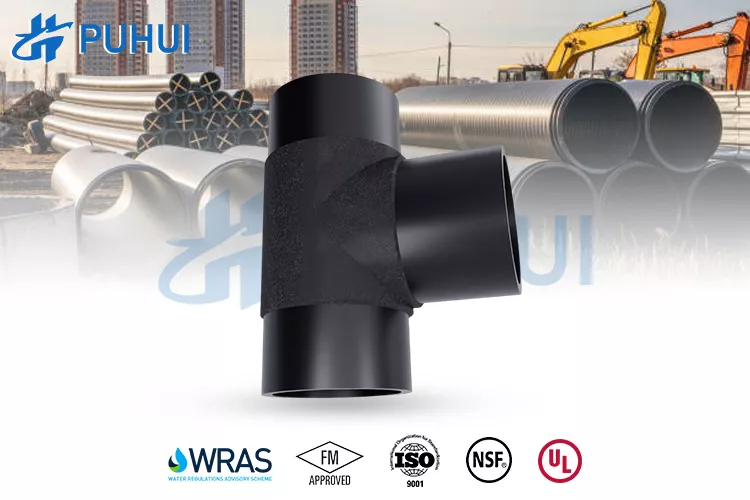

HDPE Butt Fusion Equal Tee
Raw Materials: PE100, PE100RC
Standards : EN12201, ISO 4427, AS/NZS 4129
Diameter: DN63-800mm (Larger size can be customized)
PressureRating: SDR9, SDR11, SDR13.6, SDR17
Certificates: UL, WRAS, NSF, ISO, CE
Description
Specification
Certificate
Case
Product Description
The HDPE Butt Fusion Fittings developed and produced by Puhui has excellent properties of strength and wear resistance.
Puhui HDPE Butt Fusion Fittings are widely used in PE pipe connection
The HDPE Butt Fusion Fittings developed and produced by Puhui has excellent properties of strength and wear resistance. HDPE Butt Fusion Fittings are widely used in PE pipe connection
Advantages HDPE fittings
Non-toxic, hygienic
PE pipe fittings are non-toxic and odorless. After strict health monitoring, they are green building materials and never produce scale, which can effectively improve water quality.
Corrosion resistance
PE is an inert material that is resistant to various chemical media.
High toughness
The elongation at break of HDPE pipes is generally above 500%. For the uneven settlement of the foundation engineering construction, its adaptability is very strong and the seismic performance is good.
Long service life
The buried PE pipe fittings are used normally for more than 70 years.
Product Specification
dn | L | L1 | L2 | H | e | e | e |
SIZE(dn) | mm | mm | mm | mm | SDR17 | SDR13.6 | SDR11 |
T63 | 203 | 63 | 63 | 100 | 5.8 | ||
T75 | 232 | 70 | 70 | 117 | 6.8 | ||
T90 | 276 | 80 | 80 | 138 | 8.2 | ||
T110 | 300 | 83 | 83 | 150 | 8.1 | 10 | |
T125 | 305 | 80 | 80 | 150 | 9.2 | 11.4 | |
T140 | 320 | 80 | 80 | 160 | 10.3 | 12.7 | |
T160 | 383 | 100 | 100 | 195 | 11.8 | 14.6 | |
T180 | 400 | 90 | 90 | 197 | 13.3 | 16.4 | |
T200 | 456 | 110 | 110 | 228 | 14.7 | 18.2 | |
T225 | 485 | 110 | 110 | 242 | 16.6 | 20.5 | |
T250 | 505 | 110 | 110 | 250 | 18.4 | 22.7 | |
T280 | 535 | 110 | 110 | 267 | 20.6 | 25.4 | |
T315 | 575 | 102 | 110 | 285 | 23.2 | 28.6 | |
T355 | 595 | 110 | 110 | 295 | 21.1 | 26.1 | 32.2 |
T400 | 639 | 110 | 110 | 320 | 23.7 | 29.4 | 36.3 |
T450 | 750 | 135 | 150 | 405 | 26.7 | 33.1 | 40.9 |
T500 | 800 | 135 | 170 | 455 | 29.7 | 36.8 | 45.4 |
T560 | 910 | 140 | 170 | 475 | 33.2 | 41.2 | 50.8 |
T630 | 970 | 150 | 160 | 485 | 37.4 | 46.3 | 57.2 |
T710 | 1140 | 210 | 210 | 570 | 42.1 | 52.2 | 64.5 |
T800 | 1260 | 230 | 230 | 630 | 47.4 | 58.8 | 72.6 |
Product Certificates
Cases
HDPE Butt Fusion Reducer Tee
Product: HDPE Reducer Tee for butt fusion
DN110*90mm, DN160*110mm, DN200*110mm PN16(SDR11)
Location: Chile
