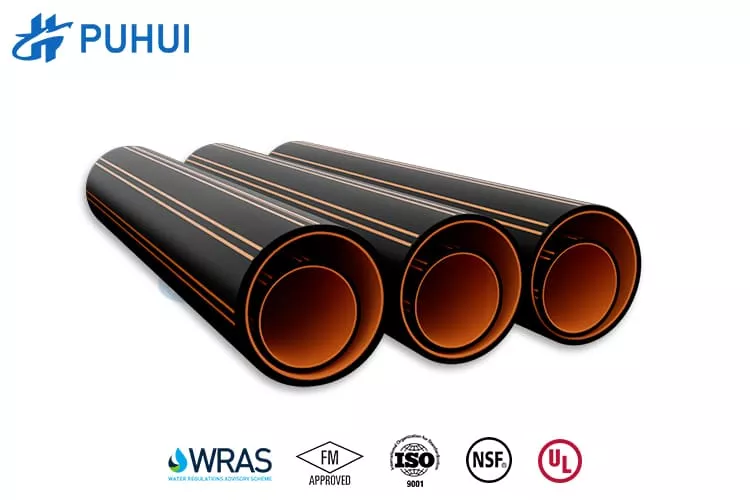

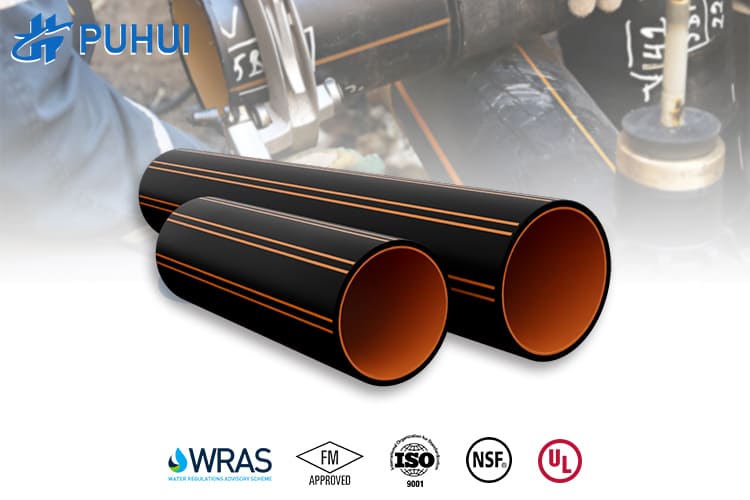

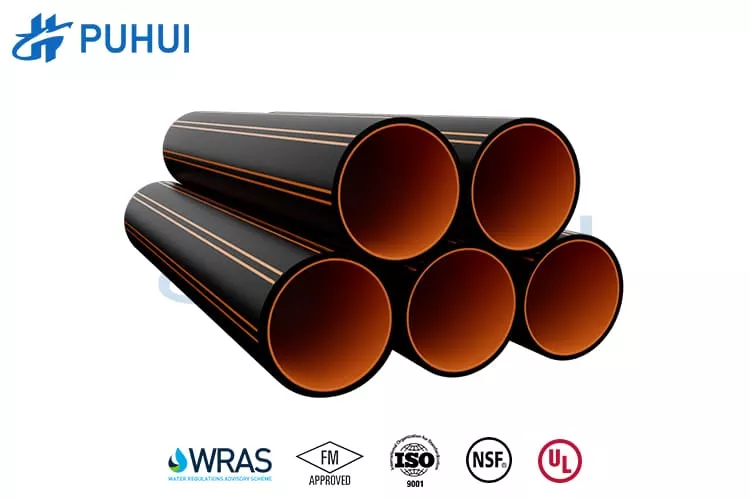

HDPE Co-Extrusion Drainage Pipe
Product Description
HDPE Co-Extrusion Drainage Pipe to PAS 1075, manufactured to BS EN 12201-2, with a inner CCTV inspection assistance layer. Single or double Red Brown striping, indicating a pressure Sewer application. Pipes are extruded using the same PE100 and PE100RC base compounds for the pipe body, inner CCTV colour and indication striping. This ensures a single homogeneous pipe is extruded, eliminating electrofusion leak issues associated with using non PE100 & PE100RC striping compounds.
Product Specification
Nominal Pressure PE 100 |
SDR 7.4 | SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | SDR 33 |
PN 25 | PN 20 | PN 16 | PN 12.5 | PN 10 | PN 8 | PN 6 | PN 5 | |
Nominal Size DN (mm) | Min Wall (mm) | Min Wall (mm) | Min Wall (mm) | Min Wall (mm) | Min Wall (mm) | Min Wall (mm) | Min Wall (mm) | Min Wall (mm) |
20 | 3.0 | 2.3 | 2.0 | – | – | – | – | – |
25 | 3.5 | 3.0 | 2.3 | 2.0 | – | – | – | – |
32 | 4.4 | 3.6 | 3.0 | 2.4 | 2.0 | – | – | – |
40 | 5.5 | 4.5 | 3.7 | 3.0 | 2.4 | 2.0 | – | – |
50 | 6.9 | 5.6 | 4.6 | 3.7 | 3.0 | 2.4 | 2.0 | – |
63 | 8.6 | 7.1 | 5.8 | 4.7 | 3.8 | 3.0 | 2.5 | – |
75 | 10.3 | 8.4 | 6.8 | 5.6 | 4.5 | 3.6 | 2.9 | – |
90 | 12.3 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | 3.5 | – |
110 | 15.1 | 12.3 | 10.0 | 8.1 | 6.6 | 5.3 | 4.2 | – |
125 | 17.1 | 14.0 | 11.4 | 9.2 | 7.4 | 6.0 | 4.8 | – |
140 | 19.2 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 | – |
160 | 21.9 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 | – |
180 | 24.6 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 | – |
200 | 27.4 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 | – |
225 | 30.8 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 | – |
250 | 34.2 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 | – |
280 | 38.3 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 | – |
315 | 43.1 | 35.2 | 28.6 | 23.2 | 18.7 | 15.0 | 12.1 | 9.7 |
355 | 48.5 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 | 10.9 |
400 | 54.7 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 | 12.3 |
450 | 61.5 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 | 13.8 |
500 | – | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 | 15.3 |
560 | – | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 | 17.2 |
630 | – | 70.3 | 57.2 | 46.3 | 37.4 | 30.0 | 24.1 | 19.3 |
710 | – | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 | 21.8 |
800 | – | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 | 24.5 |
900 | – | – | 81.7 | 66.1 | 53.3 | 42.9 | 34.4 | 27.6 |
1000 | – | – | 90.2 | 73.5 | 59.3 | 47.7 | 38.2 | 30.6 |
1200 | – | – | – | 88.2 | 71.1 | 57.2 | 45.9 | 36.7 |
1400 | – | – | – | 102.9 | 83.0 | 66.7 | 53.5 | 42.9 |
1600 | – | – | – | 117.5 | 94.8 | 76.2 | 61.2 | 49.0 |
1800 | – | – | – | – | 106.6 | 85.8 | 68.8 | 55.1 |
2000 | – | – | – | – | 118.5 | 95.3 | 76.4 | 61.2 |
Product Certificates
Cases

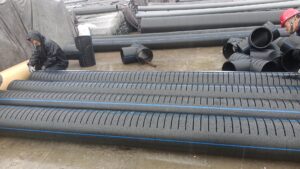

Project: Sea Water Desalination
Product: HDPE Slotted Pipe
DN355mm SD26 PN6
Location: KSA
