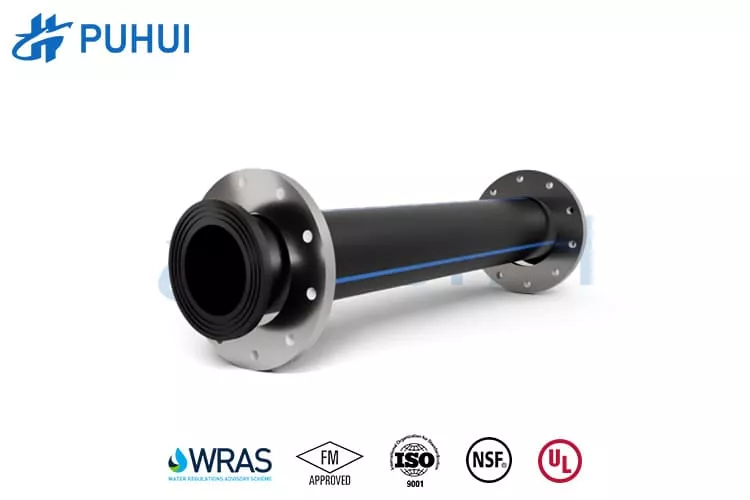

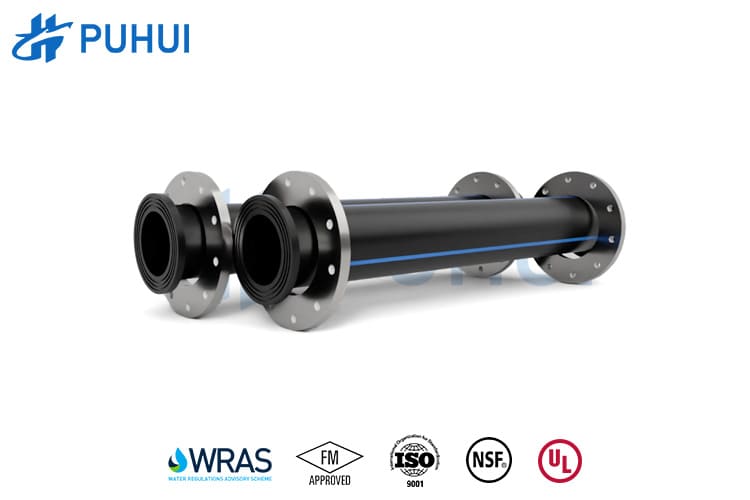

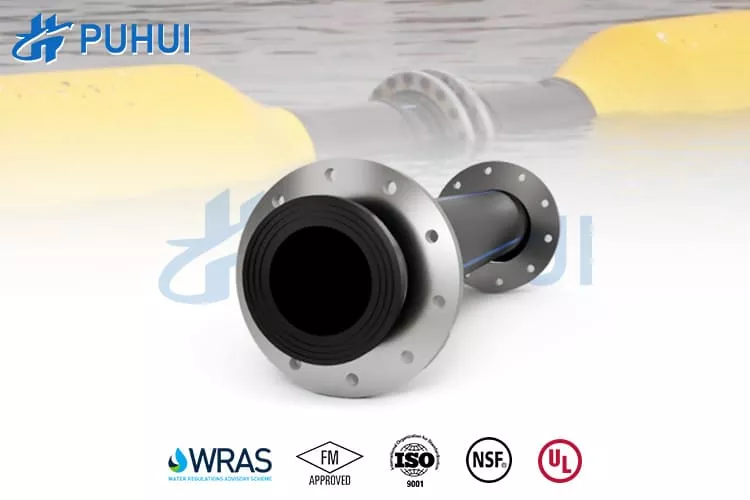

HDPE Dredge Pipe
Raw Materials: PE100, PE100RC
Standards: ISO 4427 / EN 12201/ AS/NZS 4130
Diameter : DN75-1000mm
Pressure Rating: SDR33-SDR7.4 (PN5-PN25)
Certificates: UL, WRAS, NSF, ISO, CE
Length : 5.8 length 20ft , 11.8-12m/L 40ft
Color : Black, Blue, White (Customized Color is available)
Description
Specification
Certificate
Case
Product Description
HDPE Dredge Pipe is mainly used to remove materials (sludge, mud, sand and sediments, etc.) from the depths of oceans, lakes, rivers and ponds. Due to the advantages of high mechanical and chemical resistance, HDPE Pipe is the best choice for fluid transfer systems in the dredging projects.
Product Specification
Nominal Pressure PE 100 |
SDR 7.4 | SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | SDR 33 |
PN 25 | PN 20 | PN 16 | PN 12.5 | PN 10 | PN 8 | PN 6 | PN 5 | |
Nominal Size DN (mm) | Min Wall (mm) | Min Wall (mm) | Min Wall (mm) | Min Wall (mm) | Min Wall (mm) | Min Wall (mm) | Min Wall (mm) | Min Wall (mm) |
75 | 10.3 | 8.4 | 6.8 | 5.6 | 4.5 | 3.6 | 2.9 | – |
90 | 12.3 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | 3.5 | – |
110 | 15.1 | 12.3 | 10.0 | 8.1 | 6.6 | 5.3 | 4.2 | – |
125 | 17.1 | 14.0 | 11.4 | 9.2 | 7.4 | 6.0 | 4.8 | – |
140 | 19.2 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 | – |
160 | 21.9 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 | – |
180 | 24.6 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 | – |
200 | 27.4 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 | – |
225 | 30.8 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 | – |
250 | 34.2 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 | – |
280 | 38.3 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 | – |
315 | 43.1 | 35.2 | 28.6 | 23.2 | 18.7 | 15.0 | 12.1 | 9.7 |
355 | 48.5 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 | 10.9 |
400 | 54.7 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 | 12.3 |
450 | 61.5 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 | 13.8 |
500 | – | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 | 15.3 |
560 | – | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 | 17.2 |
630 | – | 70.3 | 57.2 | 46.3 | 37.4 | 30.0 | 24.1 | 19.3 |
710 | – | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 | 21.8 |
800 | – | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 | 24.5 |
900 | – | – | 81.7 | 66.1 | 53.3 | 42.9 | 34.4 | 27.6 |
1000 | – | – | 90.2 | 73.5 | 59.3 | 47.7 | 38.2 | 30.6 |
Product Certificates

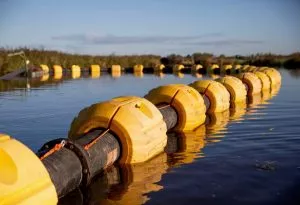

Cases
Product: HDPE Dredging Pipe
DN315~710mm SDR17 PN10
Location: Bangladesh
