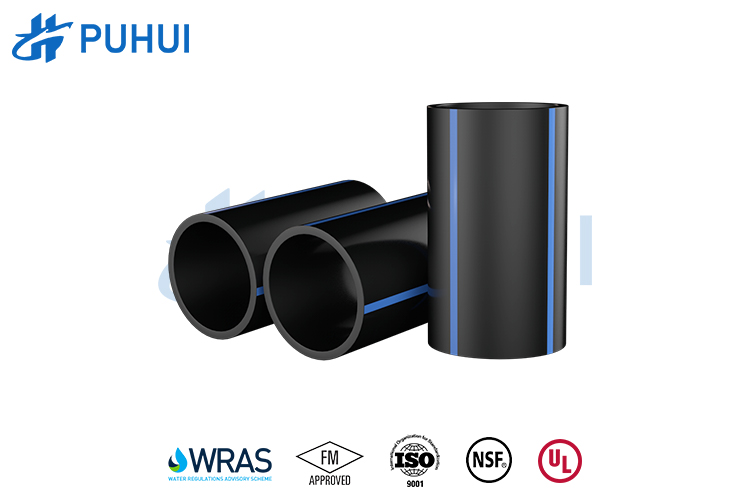

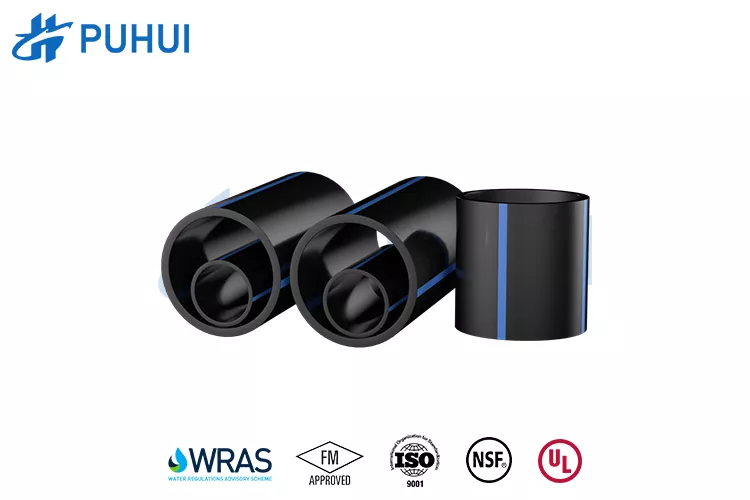

HDPE Electrical Conduit
Raw Materials: PE100
Standards: ISO 4427 / EN 12201
Diameter : DN63mm-2000mm
Pressure Rating : SDR33 - SDR11
Certificates : ISO,CE
Length : 5.8 length 20ft , 11.8-12m/L 40ft
Color: Black with blue ( color could be customized )
Description
Specification
Certificate
Case
Product Description
HDPE conduit is the preferred materials to protect electrical wires and telecommunication cable. It offers unmatched corrosion and chemical resistance, which is also flexible,durable and available in long reel length to reduce joints and installation time.
Product Specification
Nominal Pressure PE 100 |
SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | SDR 33 |
PN 16 | PN 12.5 | PN 10 | PN 8 | PN 6 | PN 5 | |
Nominal Size DN (mm) | Min Wall (mm) | Min Wall (mm) | Min Wall (mm) | Min Wall (mm) | Min Wall (mm) | Min Wall (mm) |
63 | 5.8 | 4.7 | 3.8 | 3.0 | 2.5 | – |
75 | 6.8 | 5.6 | 4.5 | 3.6 | 2.9 | – |
90 | 8.2 | 6.7 | 5.4 | 4.3 | 3.5 | – |
110 | 10.0 | 8.1 | 6.6 | 5.3 | 4.2 | – |
125 | 11.4 | 9.2 | 7.4 | 6.0 | 4.8 | – |
140 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 | – |
160 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 | – |
180 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 | – |
200 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 | – |
225 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 | – |
250 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 | – |
280 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 | – |
315 | 28.6 | 23.2 | 18.7 | 15.0 | 12.1 | 9.7 |
355 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 | 10.9 |
400 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 | 12.3 |
450 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 | 13.8 |
500 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 | 15.3 |
560 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 | 17.2 |
630 | 57.2 | 46.3 | 37.4 | 30.0 | 24.1 | 19.3 |
710 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 | 21.8 |
800 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 | 24.5 |
900 | 81.7 | 66.1 | 53.3 | 42.9 | 34.4 | 27.6 |
1000 | 90.2 | 73.5 | 59.3 | 47.7 | 38.2 | 30.6 |
1200 | – | 88.2 | 71.1 | 57.2 | 45.9 | 36.7 |
1400 | – | 102.9 | 83.0 | 66.7 | 53.5 | 42.9 |
1600 | – | 117.5 | 94.8 | 76.2 | 61.2 | 49.0 |
1800 | – | – | 106.6 | 85.8 | 68.8 | 55.1 |
2000 | – | – | 118.5 | 95.3 | 76.4 | 61.2 |
Product Certificates

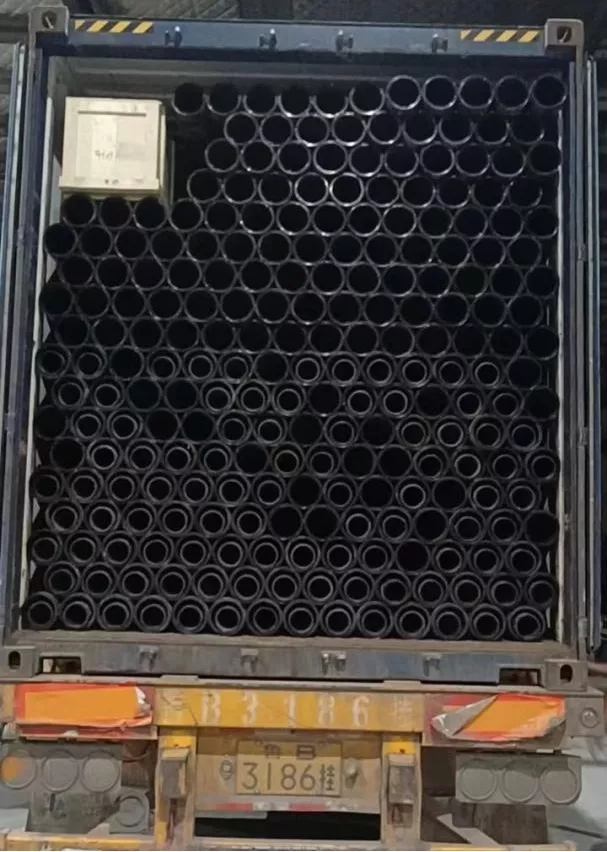

Cases
Project: [Yanbu 4] HDPE pipe & fitting
Product: HDPE Electrical Conduit Pipe
DN110、160mm SDR11 PN16
Location: Ecuador
