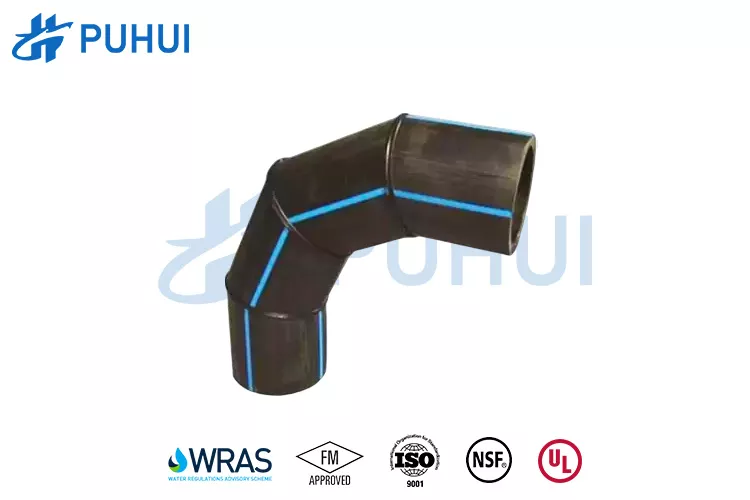

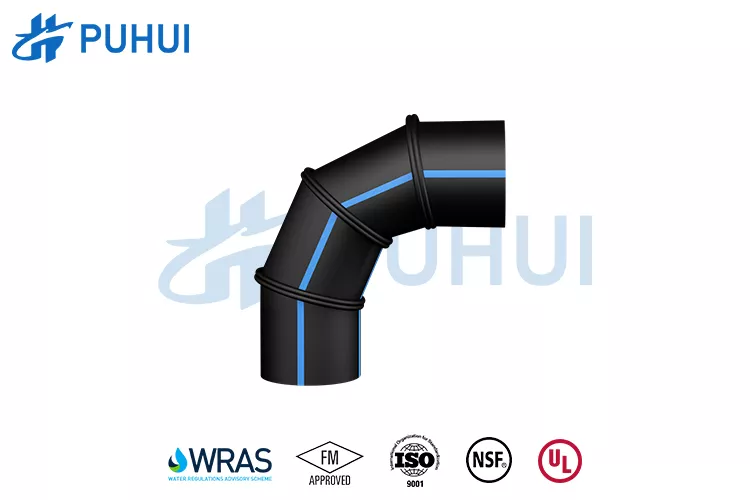

HDPE Segmented 90 Degree Bend
Raw Materials: PE100, PE100RC
Standards: ISO4427, EN12201, AS/NZS4129
Diameter: DN90mm- 1200mm
Pressure Rating : SDR7.4-SDR26
Certificates: CE, ISO, WRAS, UL
Color: Black, colors can be customized
Description
Specification
Certificate
Case
Product Description
While most of the project can be done with straight HDPE pipe and standard fittings, it is also important to have quality made custom-fabricated items, manufactured to standard, and delivered to site within the time-frame required.
Puhui HDPE fabricated pipe and fitting are means to solve installation situations where common fitting fail, meet more complex and cost efficient pipeline designs.

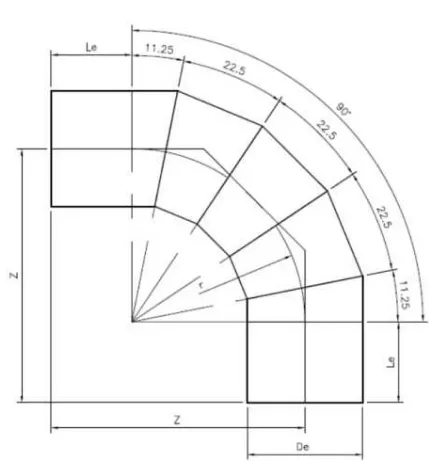

Product Specification
Dn | r | Le | Z | |
90° | 60° | |||
90 | 135 | 100 | 235 | 178 |
110 | 165 | 150 | 315 | 245 |
125 | 188 | 150 | 338 | 258 |
140 | 210 | 150 | 360 | 271 |
160 | 240 | 150 | 440 | 288 |
180 | 270 | 150 | 470 | 305 |
200 | 300 | 150 | 500 | 323 |
225 | 338 | 150 | 538 | 345 |
250 | 375 | 250 | 625 | 466 |
280 | 420 | 250 | 670 | 492 |
315 | 473 | 300 | 773 | 576 |
355 | 533 | 300 | 833 | 608 |
400 | 600 | 300 | 900 | 646 |
450 | 675 | 300 | 975 | 689 |
500 | 750 | 350 | 1100 | 783 |
560 | 840 | 350 | 1190 | 835 |
630 | 945 | 350 | 1295 | 896 |
710 | 1065 | 350 | 1415 | 965 |
800 | 1200 | 350 | 1550 | 1043 |
900 | 1350 | 400 | 1750 | 1179 |
1000 | 1500 | 400 | 1900 | 1266 |
1200 | 1800 | 400 | 2200 | 1439 |
Product Certificates

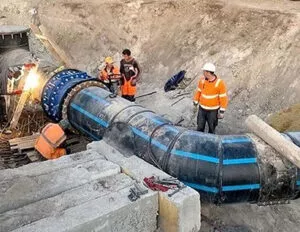

Cases
Product: HDPE Fabricated 90 Deg Bend
DN800mm SD17 PN10
Location: Myanmar
