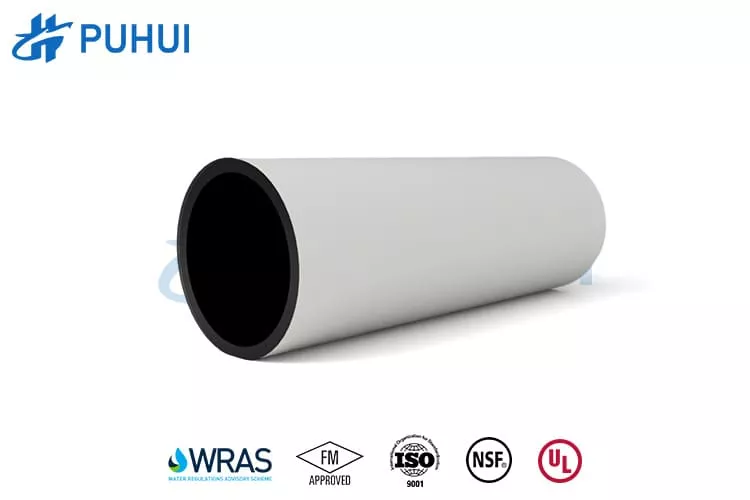

HDPE White Co-extruded Pipe
Raw Materials: PE100, PE100RC
Standards: ISO 4427 / EN 12201/ AS/NZS 4130
Diameter range: DN20mm-2000mm
Pressure Rating: SDR33-SDR7.4 (PN5-PN25)
Certificates: UL, WRAS, NSF, ISO, CE
Length : 5.8 length 20ft , 11.8-12m/L 40ft
Color: Black with white exterior (Customized Color is available).
Description
Specification
Certificate
Case
Product Description
HDPE pipes are more and more widely used in mining industry in last 30 years, and still increasing. Puhui PE100 pipe is manufactured with a highly reflective white exterior. HDPE White Co-extruded Pipe
It is the ultimate solution for above ground applications including temporary water supply, and offers the following advantages over black polyethylene pipe:

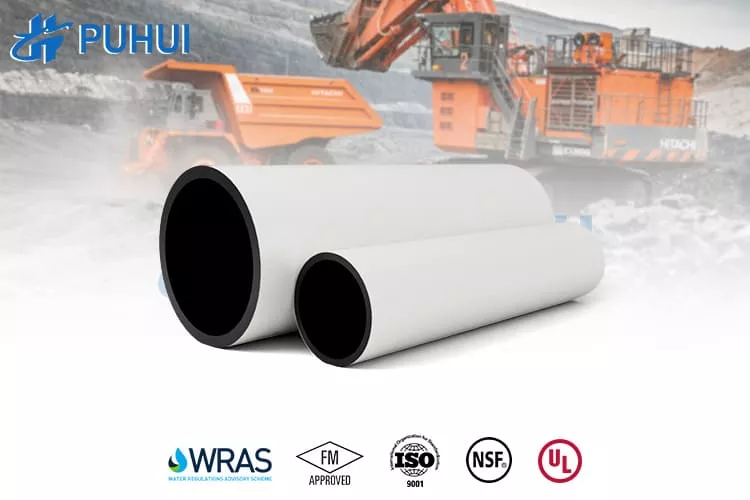

HDPE White Co-extruded Pipe for Mining
- Full white coating to minimize solar heating of pipe and contents;
- Ultra-violet (UV) resistance;
- Lower pressure rating can be used as lower operating temperature reduces the need to allow for pressure de-rating, enabling thinner wall pipe to be used. This provides cost savings in both material and through increased flow rates.
- Reduced thermal expansion / contraction mean less need to ‘snake’ pipelines
- Flexibility allows pipeline to accommodate to pographical features.
Product Specification
Nominal Pressure PE 100 |
SDR 7.4 | SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | SDR 33 |
PN 25 | PN 20 | PN 16 | PN 12.5 | PN 10 | PN 8 | PN 6 | PN 5 | |
Nominal Size DN (mm) | Min Wall (mm) | Min Wall (mm) | Min Wall (mm) | Min Wall (mm) | Min Wall (mm) | Min Wall (mm) | Min Wall (mm) | Min Wall (mm) |
20 | 3.0 | 2.3 | 2.0 | – | – | – | – | – |
25 | 3.5 | 3.0 | 2.3 | 2.0 | – | – | – | – |
32 | 4.4 | 3.6 | 3.0 | 2.4 | 2.0 | – | – | – |
40 | 5.5 | 4.5 | 3.7 | 3.0 | 2.4 | 2.0 | – | – |
50 | 6.9 | 5.6 | 4.6 | 3.7 | 3.0 | 2.4 | 2.0 | – |
63 | 8.6 | 7.1 | 5.8 | 4.7 | 3.8 | 3.0 | 2.5 | – |
75 | 10.3 | 8.4 | 6.8 | 5.6 | 4.5 | 3.6 | 2.9 | – |
90 | 12.3 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | 3.5 | – |
110 | 15.1 | 12.3 | 10.0 | 8.1 | 6.6 | 5.3 | 4.2 | – |
125 | 17.1 | 14.0 | 11.4 | 9.2 | 7.4 | 6.0 | 4.8 | – |
140 | 19.2 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 | – |
160 | 21.9 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 | – |
180 | 24.6 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 | – |
200 | 27.4 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 | – |
225 | 30.8 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 | – |
250 | 34.2 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 | – |
280 | 38.3 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 | – |
315 | 43.1 | 35.2 | 28.6 | 23.2 | 18.7 | 15.0 | 12.1 | 9.7 |
355 | 48.5 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 | 10.9 |
400 | 54.7 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 | 12.3 |
450 | 61.5 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 | 13.8 |
500 | – | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 | 15.3 |
560 | – | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 | 17.2 |
630 | – | 70.3 | 57.2 | 46.3 | 37.4 | 30.0 | 24.1 | 19.3 |
710 | – | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 | 21.8 |
800 | – | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 | 24.5 |
900 | – | – | 81.7 | 66.1 | 53.3 | 42.9 | 34.4 | 27.6 |
1000 | – | – | 90.2 | 73.5 | 59.3 | 47.7 | 38.2 | 30.6 |
1200 | – | – | – | 88.2 | 71.1 | 57.2 | 45.9 | 36.7 |
1400 | – | – | – | 102.9 | 83.0 | 66.7 | 53.5 | 42.9 |
1600 | – | – | – | 117.5 | 94.8 | 76.2 | 61.2 | 49.0 |
1800 | – | – | – | – | 106.6 | 85.8 | 68.8 | 55.1 |
2000 | – | – | – | – | 118.5 | 95.3 | 76.4 | 61.2 |

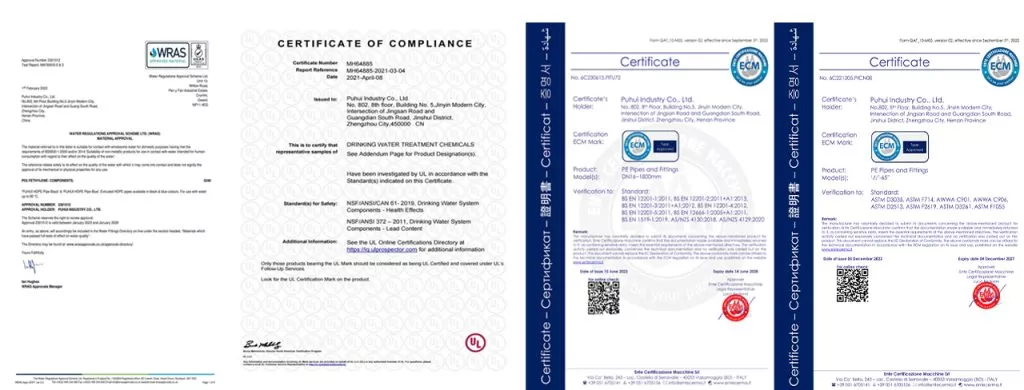

Product Certificates
Cases
Product: Black HDPE Pipe and Fittings
DN450mm SDR11 PN16
Location: Madagascar
